Initial Configuration of Simple Machines Forum (SMF)

We went through the steps required to install Simple Machines Forum or SMF in the post How to Install Simple Machines Forum SMF . This post will now deal with the initial configuration of Simple Machines Forum so that you can start publicizing the forum. While installing the forum, we created an admin user who will be the super user of the forum.

Login to Simple Machines Forum admin control panel

We start by supposing that my forum is installed at http://copablog.com/forum/

The admin interface of the forum will have a URL similar to http://copablog.com/forum/index.php?action=admin

You will get the admin URL from the softaculous interface, if you installed SMF through softaculous. Enter the login details which you gave during installation.

login to simple machines forum



Once the login details are verified, you will be taken to the admin dashboard of Simple Machines Forum.

login to simple machines forum - admin panel



Initial Configuration of Simple Machines Forum

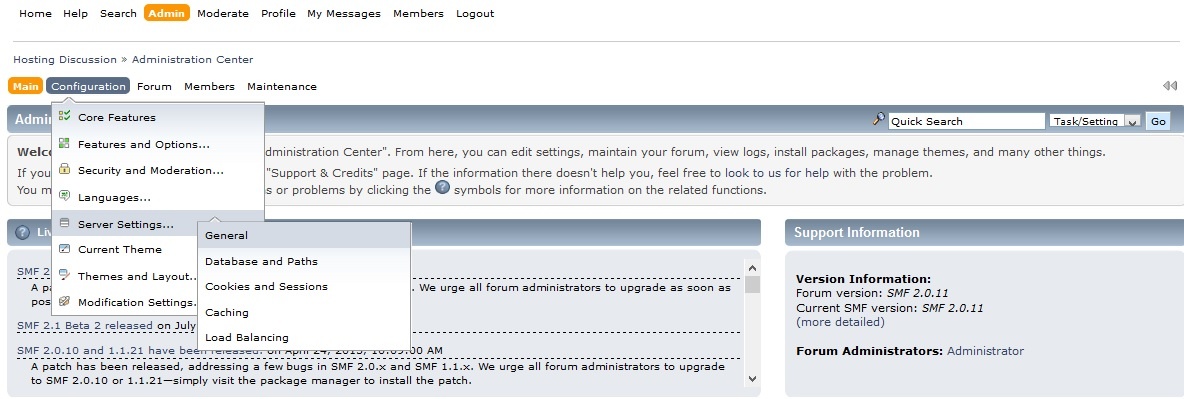

Let’s straight away get into the configuration part. We will start with the basic configuration. Under the Admin tab, go to Configuration -> Server Settings -> General.



simple machines forum - configuration



Here is where we give the forum name and decide on the basic settings. Following details are required here.



Under the same tab, there are options for Cookies & Session, Caching, Load Balancing etc which you can leave as default as you are configuring this for the first time.



Databases & Paths

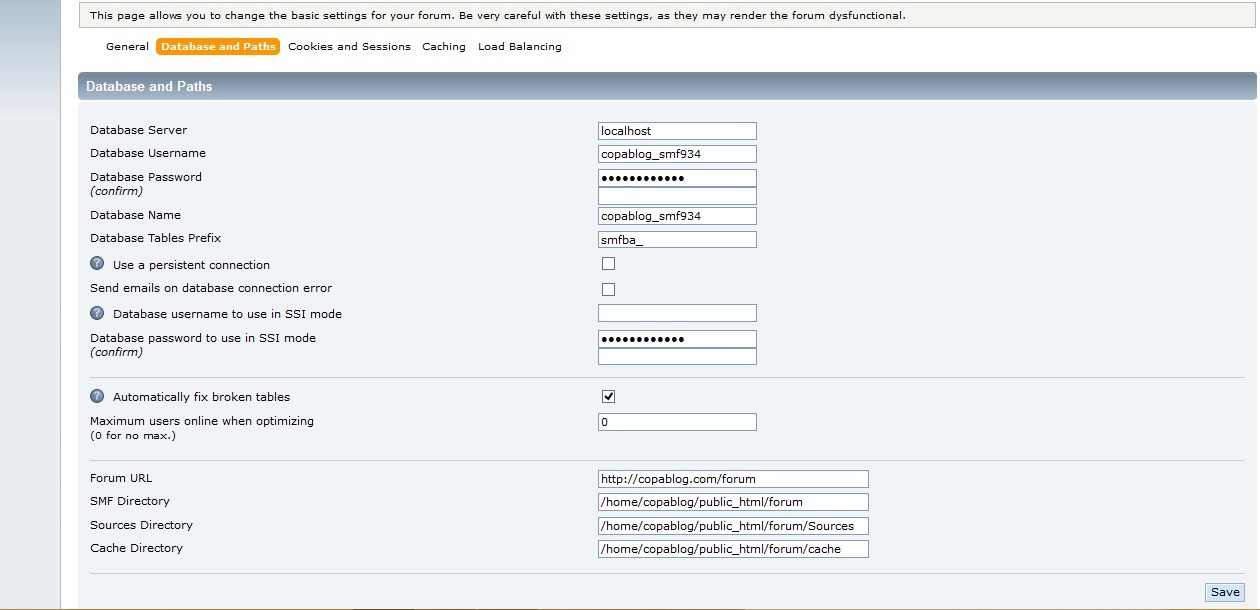

Next Option is where you mention the database associated with the forum, its username and password, and details of where your forum is installed. All these details will be automatically populated if you are using softaculous to install SMF. Otherwise you will have to manually enter these details.

SMF details



Boards

Now, we have given our forum a name. We have confirmed on the forum database details and the paths to installation files. Next, we move on to creating discussion boards. SMF by default will have an example board named ‘General Discussion’. Here we are now going to show how to create another board, how to create sub-boards for various discussions etc.

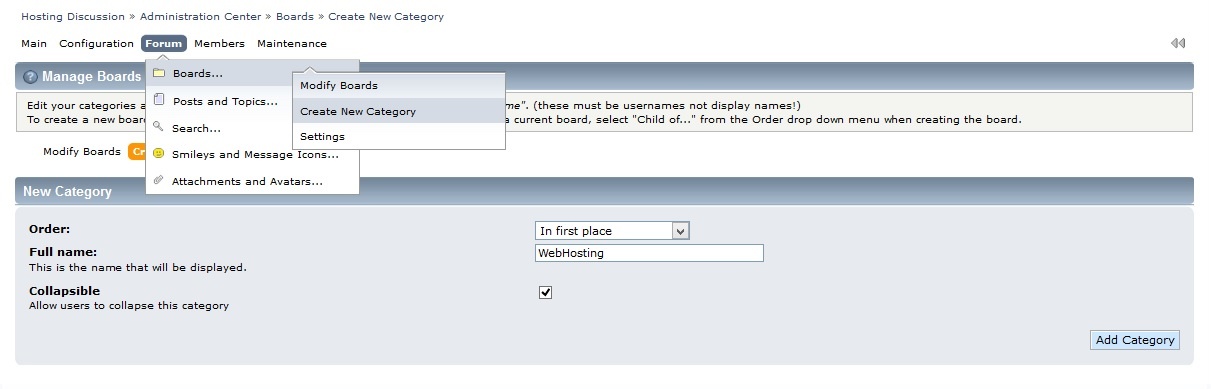

Under Admin Tab -> Forum -> Boards -> Create New Category. It will ask you where the new board is to be placed, whether as the first board or after the board which is already present. Choose based on your requirement, and give a name to your board. I am planning to make this board for Web Hosting, so named it Web Hosting.

smf simple machines forum name

Next, I need sub boards created under Web Hosting board, so that I can categorize the discussion on Shared Hosting, Reseller Hosting, VPS hosting etc accordingly. For that, go to Forum -> Boards -> Modify Boards and click on Add Board option under Web Hosting Category as shown in the image.



modify board in smf simple machines forum

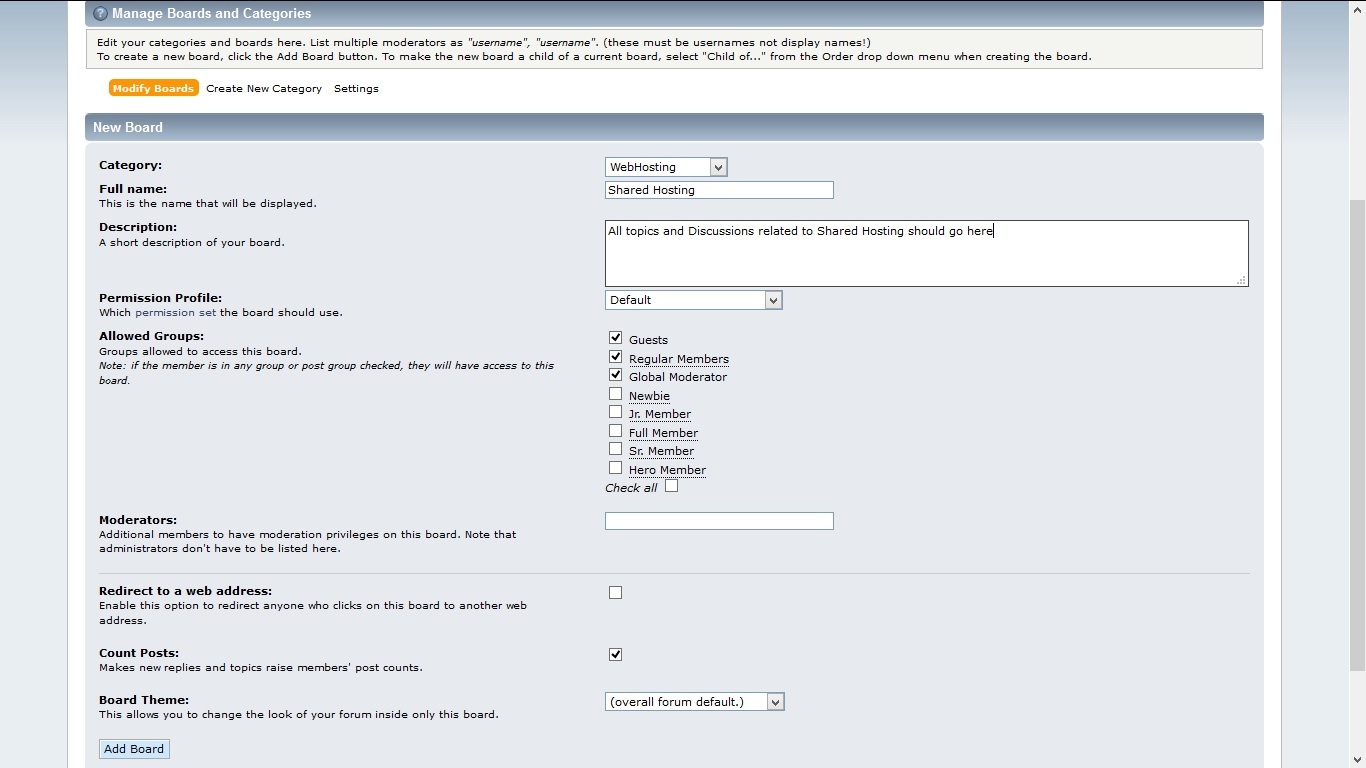

Clicking on ‘Add Board’ button will take you to an interface where you can give the sub-board name, choose where you want to place it, give a description for the new board, various permissions for users to access it etc. The image given below shows the details I entered to create a board name ‘Shared Hosting’.



smfc11



Similarly I created boards for Reseller Hosting, VPS Hosting etc as well. Now, let us see how the changes we did will be visible to a guest who browse the forum.

smfc12



The above image shows the following:



In the image above, you might have noticed that topics and posts to the right of each sub board is shown as 0. We have not created any topics or posts yet, because not only the admin, but any user with permission can create a topic. Hence, let’s move to user creation.

Registering a User

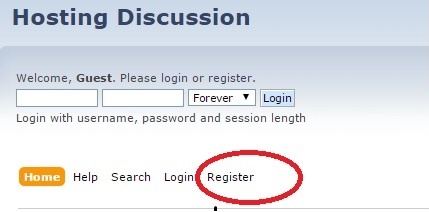

A user can register his account from the forum home page. Just click on the ‘Register’ link on the top left of the home page.

smfc13

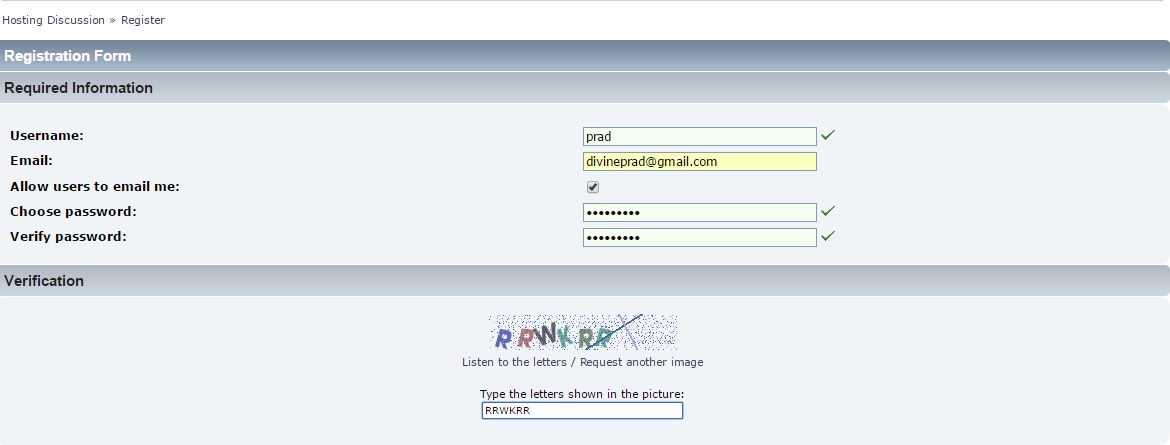

Just like any installation, you will be asked to ‘Accept the Terms of Service’. Click on the button ‘I accept the terms of agreement’ and you will be taken to the registration form. Enter your desired username, email address and password, enter verification code displayed and you are done. You can then login using the username you registered.

smfc14



Once logged in, you can setup your profile from the ‘Profile section’. In addition you can check your messages, search the forum, create your own topics, reply to posts etc.

Creating Topics & Posts

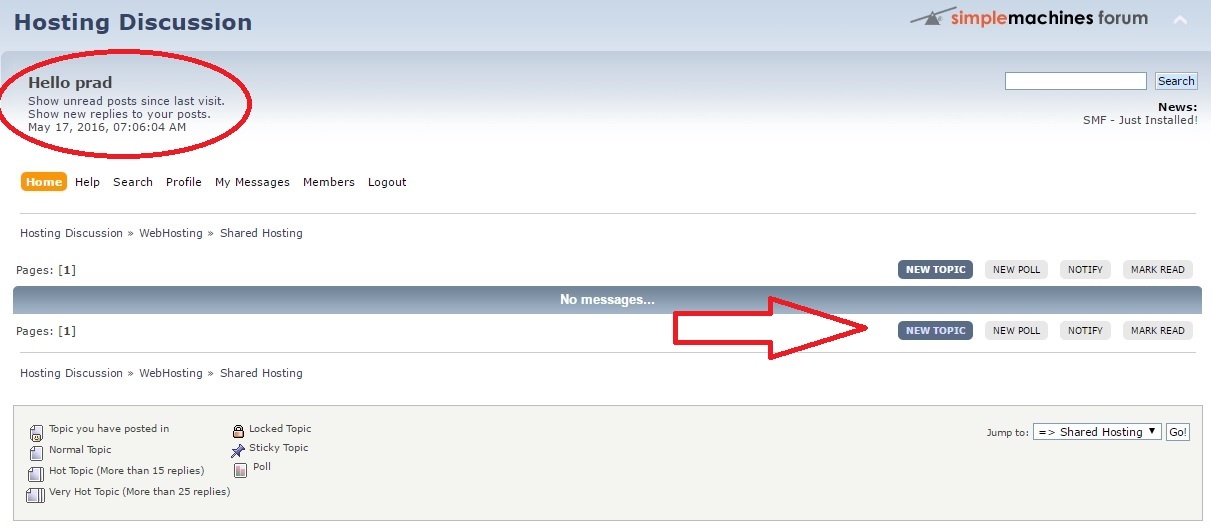

Now that you have created a user, login as that user to start a new topic. Just click on the board name you like to start the topic on and click ‘New Topic’. You can also start a new poll if you like.



smfc15

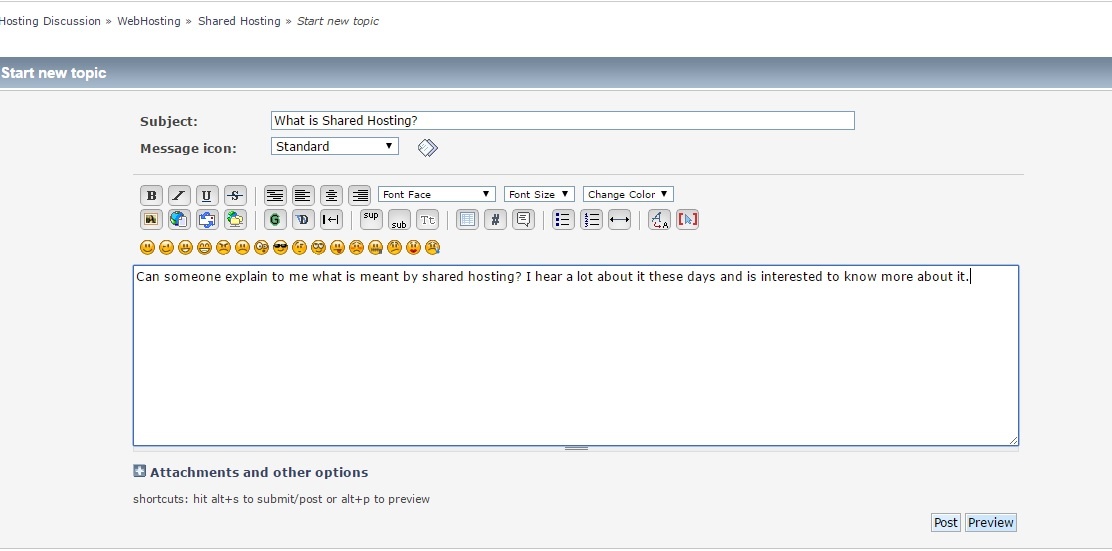

The new topic will let you put a subject for the topic, and anyone with access can reply to it which is termed as a post.

smfc16

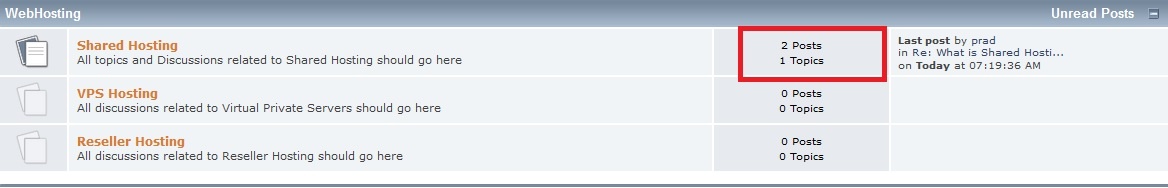

I just made a quick reply to the topic I started, and you can see how many replies you have received for the topic you created and how many views your post topic has received.

smfc17



In this post, we discussed how to start a forum by creating boards, creating topics and posts, replying to posts, creating users etc. The admin panel has more advanced options like modifying themes, moderate the posts, handling forum members, member groups etc. The post has discussed only the Initial Configuration of SMF to start with, hope it helps you to get started.
